- Model: PRIME B860-PLUS WIFI-CSM
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5, Max 256GB, 8666+ MT/s (OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 2x M.2, Realtek 2.5Gb LAN, Wi-Fi 6E, Bluetooth 5.3
- Stock: In Stock
- Brand: Asus
- Model: PRIME B860-PLUS WIFI-CSM
| Basic Information | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports up to 24-Bit/192 kHz playback |
| BIOS | 2 x 128 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | INTEL B860 |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket |
| Connector & Ports | |
| Audio | 3 x Audio jacks |
| Display Port | 1x DisplayPort |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| RAID | SATA RAID 0/1/5/10 |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |

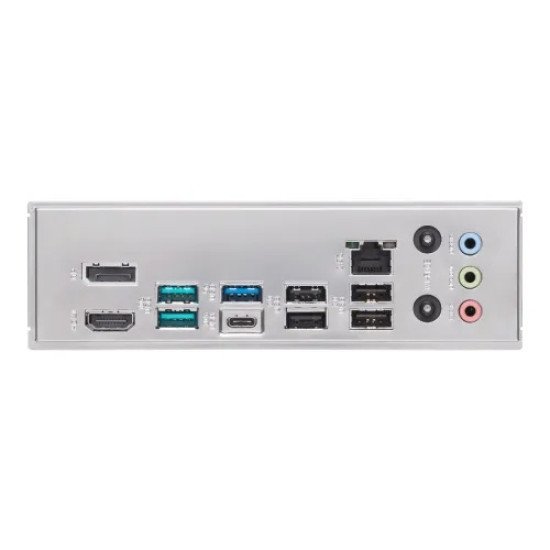

| USB (s) | Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps port (1 x USB Type-C) 1 x USB 5Gbps header supports additional 2 USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3 |
| Expansion Slots | |
| M.2 Socket | 2 x M.2 |
| PCI | Intel Core Ultra Processors (Series 2)* 1 x PCIe 5.0 x16 slot (PCIEX16(G5)) Intel B860 Chipset 1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode) 3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode) |
| Graphics | |
| Graphics | 1 x DisplayPort** 1 x HDMI port*** * Graphics specifications may vary between CPU types |
| Memory | |
| Maximum Memory | Maximum Memory Capacity 256GB |
| Slots | 4 |
| Supported Memory | 4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) |
| Type | DDR5 |
| Others | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS DriverHub ASUS GlideX ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| Special Features | ASUS 5X PROTECTION III -DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Warranty Information | |
| Manufacturing Warranty | 3 Year warranty |

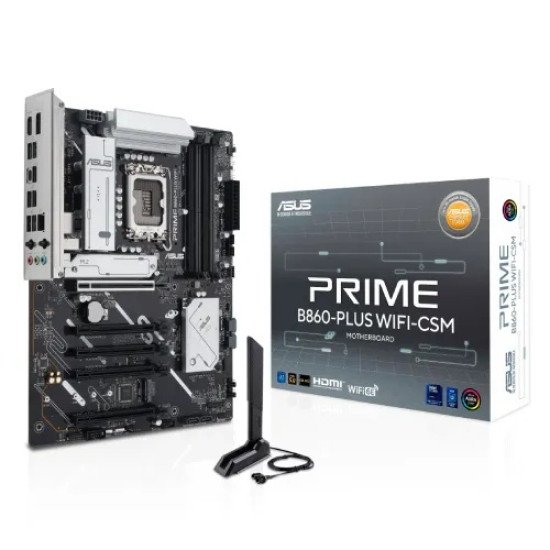

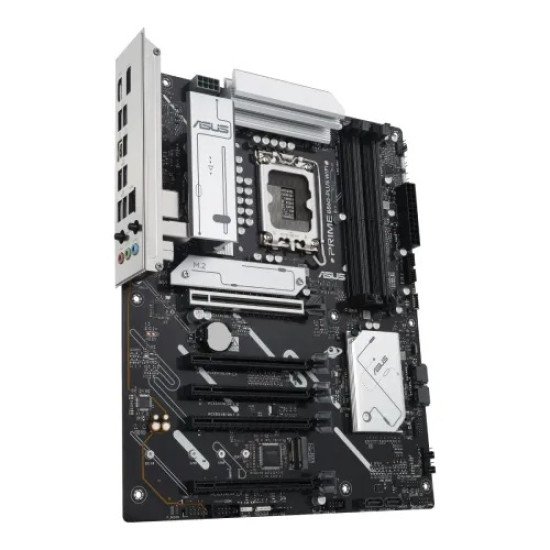

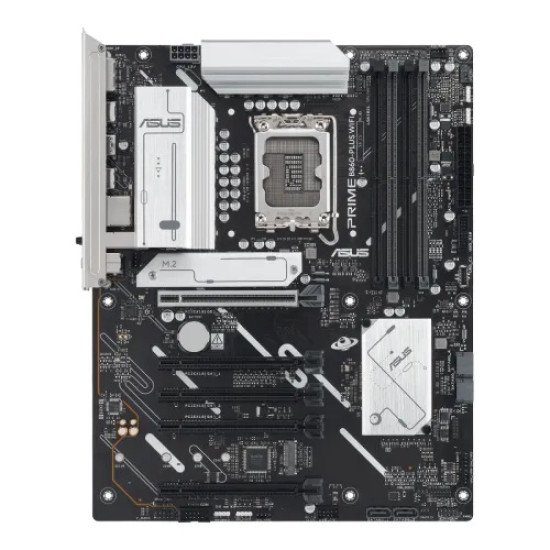

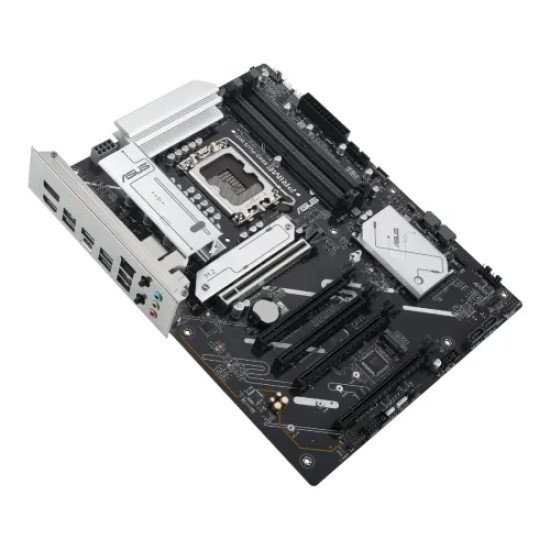

Asus PRIME B860-PLUS WIFI-CSM LGA 1851 ATX Motherboard
The Asus PRIME B860-PLUS WIFI-CSM is a high-performance Asus motherboard intended for advanced PC builders. This Asus Motherboard supports Intel Core Ultra Processors (Series 2) via the LGA1851 socket. This Asus B860 motherboard can support up to 256GB of DDR5 memory at speeds of up to 8666+MT/s (OC), offering great performance for demanding workloads. This Asus B860 Motherboard has a variety of expansion options, including one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot, and three PCIe 4.0 x16 slots, allowing for a wide choice of peripherals. The Asus 860 Series Motherboard includes two M.2 slots and four SATA 6Gb/s connections for flexible and fast storage solutions. 2.5Gb Ethernet, Wi-Fi 6E, and Bluetooth v5.3 provide fast and robust network connectivity. The USB ports include USB 20Gbps Type-C, USB 10Gbps Type-A, and USB 2.0, which cater to a wide range of devices. Cooling is efficiently managed using VRM heatsinks, an M.2 heatsink, and numerous fan headers, resulting in optimal thermal performance. This Asus ATX motherboard also supports ASUS Aura Sync for custom RGB lighting and EZ PC DIY for easy build customization. Overall, the Asus WiFi motherboard has been designed to provide reliable power delivery, effective cooling, and great performance tuning options, making The Asus PRIME B860-PLUS WIFI-CSM motherboard a fantastic choice for both gamers and content makers.
