- Model: B760M-AYW WIFI D4
- Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
- Supported RAM: 2 x DIMM, Max. 64GB, DDR4
- Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports
- Features: Realtek 2.5Gb Ethernet, Wi-Fi 6, PCIe 4.0 x16 slot
- Stock: In Stock
- Brand: Asus
- Model: B760M-AYW WIFI D4
| Basic Information | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | Intel B760 Chipset |
| Form Factor | mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Connector & Ports | |
| Audio | 3 x audio jacks |
| HDMI | 1 x HDMI |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| USB (s) | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Wireless Communication module | Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2 |
| Expansion Slots | |
| M.2 Socket | 2 x M.2 slots Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots |
| Graphics | |
| Graphics | 1 x HDMI port Graphics specifications may vary between CPU types Supports 4K@60Hz as specified in HDMI 2.1 |
| Memory | |
| Maximum Memory | 64GB |
| Slots | 2 x DIMM |
| Supported Memory | 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/3000/2933/2800/2666/ 2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Type | DDR4 |
| Others | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - VRM heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Warranty Information | |
| Manufacturing Warranty | 3 years |

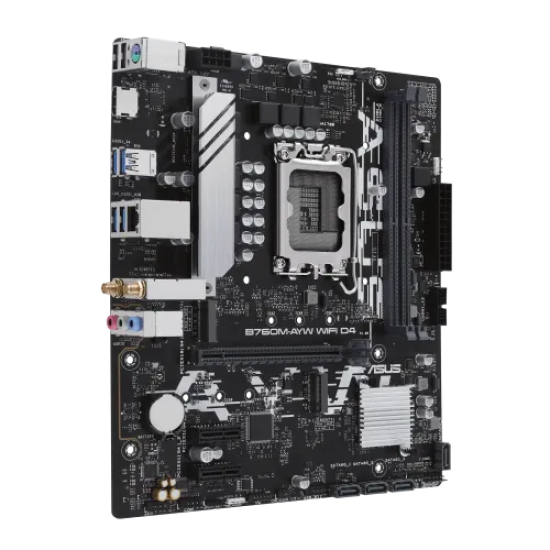

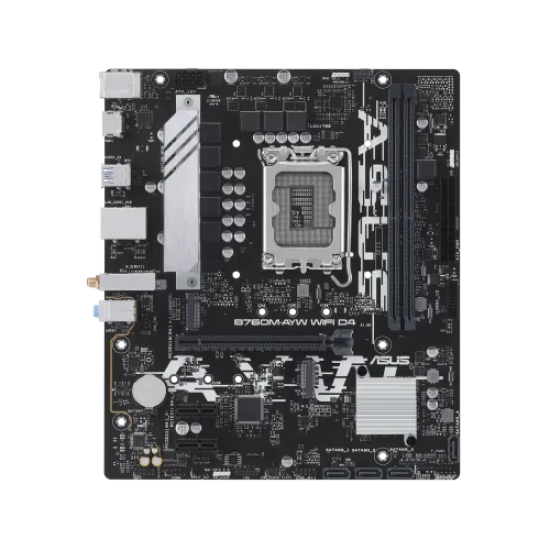

ASUS B760M-AYW WIFI D4 mATX Motherboard
The ASUS B760M-AYW WIFI D4 mATX Motherboard is an excellent option for both gamers and creators, providing a strong platform for Intel's 14th, 13th, and 12th Gen processors, supporting LGA1700 sockets. Its two DIMM slots support up to 64GB of DDR4 memory, with speeds up to 5333MHz (OC), allowing for quick and seamless performance. It is powered by the Intel B760 chipset. With two PCIe 4.0 x1 slots for additional devices and one PCIe 4.0 x16 slot for graphics cards, the ASUS B760M-AYW WIFI D4 mATX Motherboard offers great expansion options. It provides versatile and fast data access for storage by supporting four SATA 6Gb/s ports and two M.2 slots with PCIe 4.0 x4 mode. The ASUS B760M-AYW WIFI D4 mATX Motherboard's connectivity is its strongest point; it has Realtek 2.5Gb Ethernet and Wi-Fi 6 for incredibly quick networking. Bluetooth 5.2 further improves wireless peripheral connectivity. With four USB 3.2 Gen 1 Type-A connections, two USB 2.0 ports, and an HDMI port for integrated graphics, the back I/O panel offers plenty of USB connectivity. The Realtek 7.1 Surround Sound High Definition Audio CODEC, which supports playback at up to 24-bit/192kHz, provides excellent sound quality for audio performance. Advanced ASUS features like multiple fan headers, DIGI+ VRM, and a VRM heatsink design promote stability and cooling. With addressable Gen 2 and RGB connections, users may personalize their lighting configurations with the ASUS B760M-AYW WIFI D4 mATX Motherboard's Aura Sync RGB feature. It guarantees long-lasting durability with ASUS's 5X Protection III, which includes overvoltage protection, SafeSlot Core, and stainless-steel back I/O. It is a great choice for a range of customers looking for high performance, stability, and customization in a small mATX form factor because it also includes user-friendly software like Armoury Crate, AI Suite 3, and UEFI BIOS for system monitoring and tuning.
