- Model: PRIME B760M-F
- Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
- Supported Memory: 2 x DIMM, Max. 96GB, DDR5
- Graphics Output: 1 x HDMI
- Features: 1 x Realtek 1Gb Ethernet
- Stock: In Stock
- Brand: Asus
- Model: PRIME B760M-F
| Basic Information | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | Intel B760 Chipset |
| Form Factor | micro-ATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Connector & Ports | |
| Audio | 3 x Audio jacks |
| HDMI | 1x HDMI port |

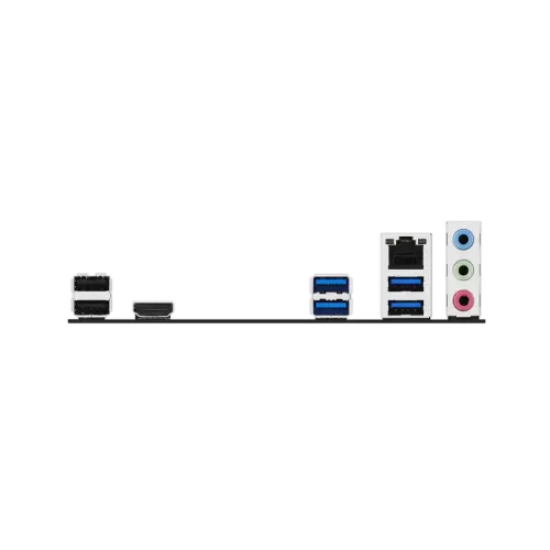

| Internal I/O Ports | Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front panel audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel headerBack Panel I/O Ports 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet port |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| USB (s) | Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
| Expansion Slots | |
| M.2 Socket | Total supports 2 x M.2 slots |
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x1 slot |
| Graphics | |
| Graphics | ** Supports 4K@30Hz as specified in HDMI 1.4. |
| Memory | |
| Maximum Memory | Max. 96GB |
| Slots | 2 x DIMM |
| Supported Memory | 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module |
| Type | DDR5 |
| Others | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Addressable Gen 2 headers |
| Warranty Information | |
| Manufacturing Warranty | 3 years warranty |

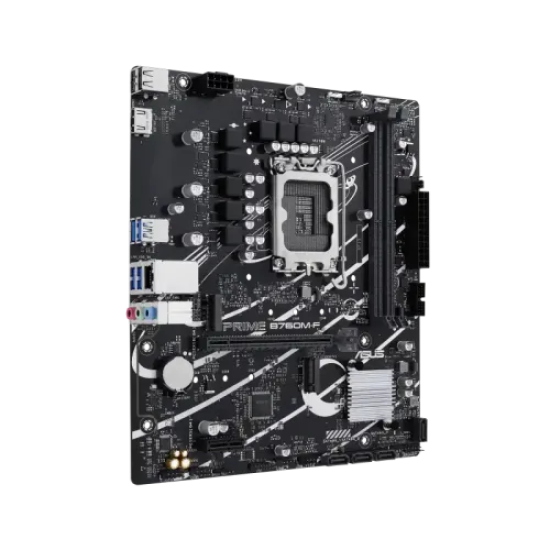

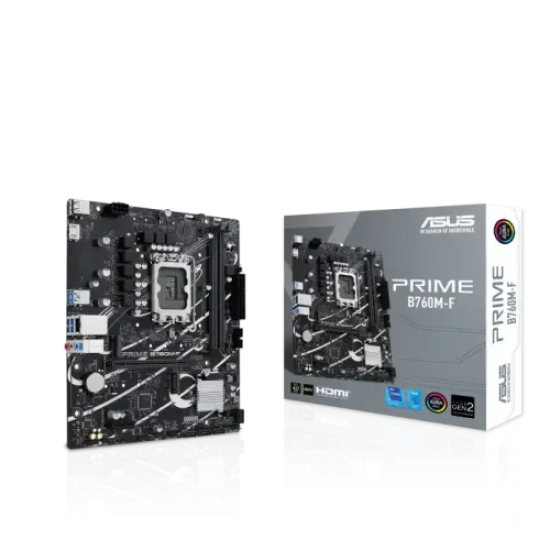

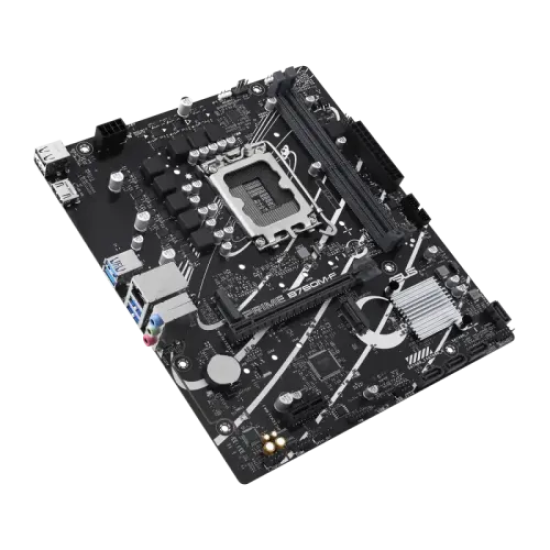

Asus PRIME B760M-F mATX Motherboard
The ASUS PRIME B760M-F is a high-performance micro-ATX motherboard designed to accommodate Intel's 12th, 13th, and 14th generation processors with its Intel B760 chipset. Despite its compact size, it offers an array of features ideal for gamers, content creators, and professionals who need a reliable and powerful system. Equipped with PCIe 4.0 support, the motherboard ensures faster data transfer speeds, and its two PCIe 4.0 M.2 slots provide ultra-fast storage options, making it perfect for users looking for rapid boot times and seamless performance. Supporting the latest DDR5 RAM, the ASUS PRIME B760M-F future-proofs your system for enhanced responsiveness. The motherboard includes Realtek 1Gb Ethernet for stable and reliable network connectivity, ensuring smooth performance in gaming, streaming, and multitasking. Thermal management is optimized with a PCH heatsink, hybrid fan headers, and ASUS Fan Xpert 2+ to keep your system cool even during heavy workloads. For aesthetic customization, the board features Aura Sync RGB lighting with onboard addressable Gen 2 headers, allowing easy synchronization with other Aura Sync-capable components. The motherboard comes with a two-way AI noise cancelation feature, which significantly reduces background noise during voice chats, making it a great choice for gaming or video conferencing. With its robust feature set and future-ready capabilities, the ASUS PRIME B760M-F is perfect for those looking to build a powerful AI-powered PC, gaming setup, or professional workstation.
