- Model: PRO A620M-B
- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 2x DDR5, up to 6800+(OC) MT/s
- Graphics Output: 1x HDMI, 1x VGA
- Features: Realtek RTL8125BG 5G LAN
- Stock: In Stock
- Brand: MSI
- Model: PRO A620M-B
| Basic Information | |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Chipset | AMD A620 |
| Form Factor | mATX 215mmx243.84mm |
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |

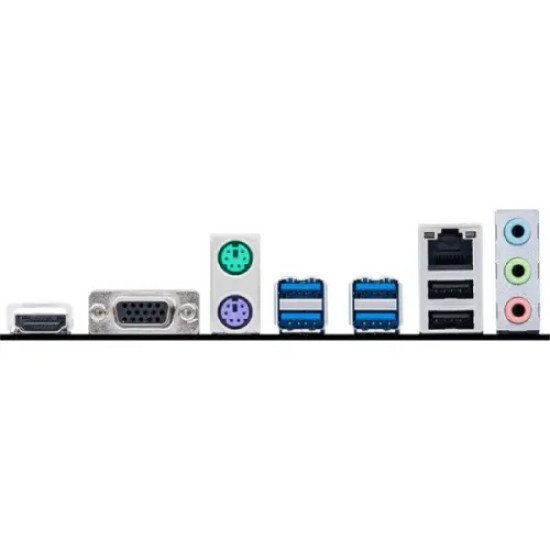

| Connector & Ports | |
| Audio | 1x Front Audio (JAUD) |
| HDMI | 1x HDMI |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| LAN Port (s) | Realtek RTL8125BG 2.5G LAN |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Supported Storage | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| VGA | 1x VGA |
| Expansion Slots | |
| M.2 Socket | 1x M.2 |
| PCI | 1x PCI-E x16 slot Supports x16 (For Ryzen 9000 and 7000 Series processors) Supports x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports x4 (For Ryzen 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Graphics | |
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| Memory | |
| Maximum Memory | 128GB |
| Slots | 2x DIMMs |
| Supported Memory | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s 1DPC 1R Max speed up to 6800+ MHz 1DPC 2R Max speed up to 6000+ MHz |
| Type | DDR5 |
| Others | |
| Special Features | 4x EZ Debug LED |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |

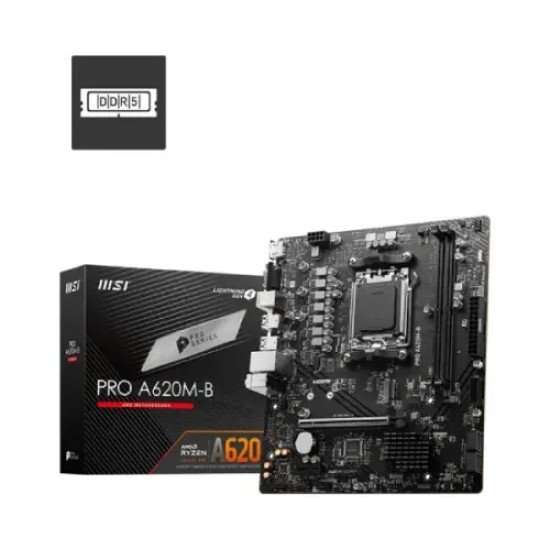

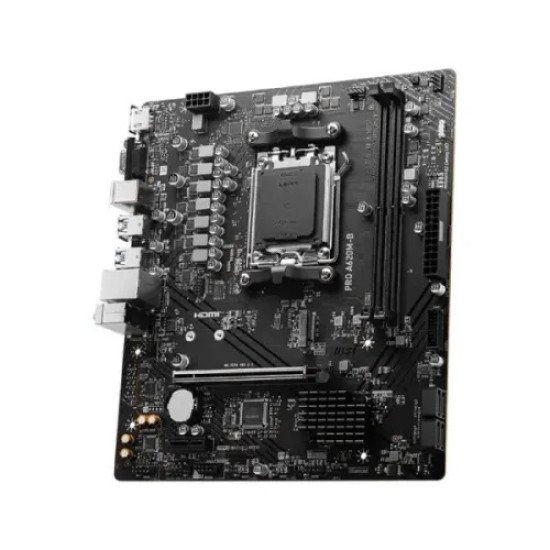

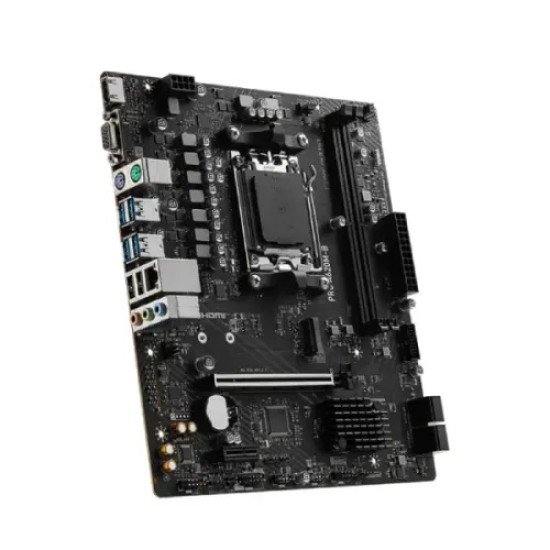

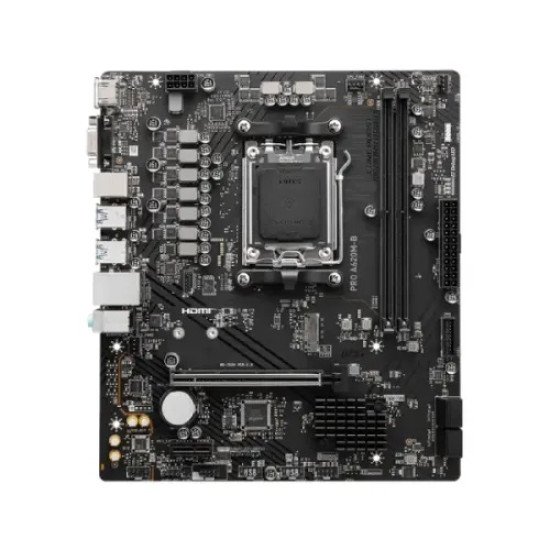

MSI PRO A620M-B AM5 mATX Motherboard
The MSI PRO A620M-B AM5 mATX Motherboard is a high-performance, compact solution intended for contemporary AMD systems, making it an excellent choice for customers looking to build using cutting-edge technology. Powered by the AMD A620 chipset, the MSI PRO A620M-B Motherboard supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors via the sophisticated AM5 socket, providing long-term compatibility and cutting-edge performance. The MSI PRO A620M-B has two DDR5 memory slots and can handle up to 128GB of non-ECC, unbuffered dual-channel DDR5 RAM at overclocked speeds of up to 6800+ MHz (1DPC 1R) and 6000+ MHz (1DPC 2R), as well as complete support for AMD EXPO memory profiles. Onboard graphics capability includes an HDMI 2.1 connector with 4K at 60Hz output and a legacy VGA port, which are both accessible on CPUs with integrated graphics, increasing adaptability for various display configurations. The MSI PRO A620M-B AM5 mATX Motherboard has a PCIe 4.0 x16 slot that converts to x16, x8, or x4 depending on the CPU used, as well as an extra PCIe 3.0 x1 slot. Storage is likewise versatile, with one PCIe 4.0 x4 M.2 slot (supporting 2280 and 2260 NVMe SSDs) and four SATA 6Gbps ports that support RAID 0, 1, and 10, making the MSI PRO A620M-B Motherboard suitable for both speed and redundancy in storage setups. Networking is driven by the Realtek RTL8125BG 2.5G LAN, providing ultra-fast wired connections, while the integrated Realtek ALC897 audio codec delivers 7.1-channel high-definition sound for immersive multimedia experiences. Connectivity on the rear I/O includes USB 3.2 Gen 1 5Gbps Type-A ports, USB 2.0, HDMI, VGA, audio jacks, LAN, and PS/2 keyboard and mouse support, while internal headers provide power connections, fan headers, USB ports, audio, TPM 2.0 support, addressable RGB (JARGB_V2) and RGB (JRGB) headers for lighting, and EZ Debug LEDs for simplified troubleshooting. The MSI PRO A620M-B measures 215mm by 243.84mm and fits inside micro-ATX cases, making it ideal for small yet powerful desktop configurations. The MSI Motherboard is compatible with Windows 11 and Windows 10 64-bit, providing a future-ready platform for gamers, artists, and professionals. Whether you call it the MSI PRO A620M-B, MSI PRO A620M-B Motherboard, or simply the MSI Motherboard, this board is a solid basis for any high-performance AMD system.
