- Model: PRO Z890-S WIFI WHITE
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5, Dual Channel 8800+ MT/s (OC), Max 256GB
- Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
- Features: 3x M.2 Slot, 1x 2.5Gbps LAN, Intel Wi-Fi 7, Bluetooth 5.4
- Stock: In Stock
- Brand: MSI
- Model: PRO Z890-S WIFI WHITE
| Basic Information | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Chipset | INTEL Z890 |
| Form Factor | ATX 243.84mmx304.8mm |
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) LGA 1851 |
| Connector & Ports | |
| Audio | 1x Front Audio (JAUD) |
| Display Port | 1x DisplayPort 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| LAN Port (s) | Realtek 8125D 2.5Gbps LAN |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| USB (s) | 4x USB 2.0 (Front) 6x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
| Wireless Communication module | Intel Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
| Expansion Slots | |
| M.2 Socket | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| PCI | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU) |
| Graphics | |
| Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
| Memory | |
| Maximum Memory | 256GB |
| Slots | 4x UDIMM |
| Supported Memory | Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
| Type | DDR5 |
| Others | |
| Special Features | 4x EZ Debug LED |
| Warranty Information | |
| Manufacturing Warranty | 3 Year warranty |

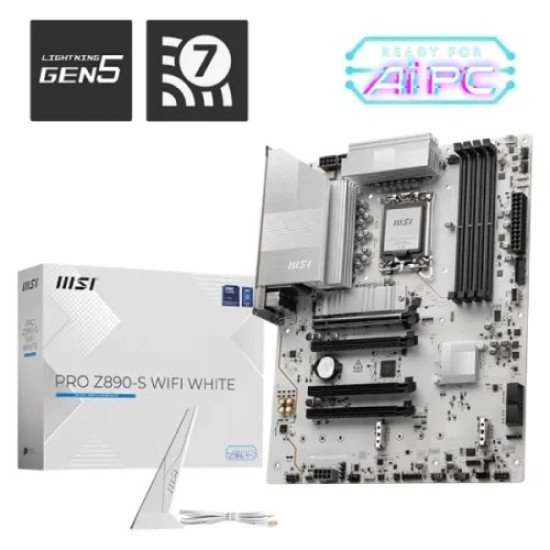

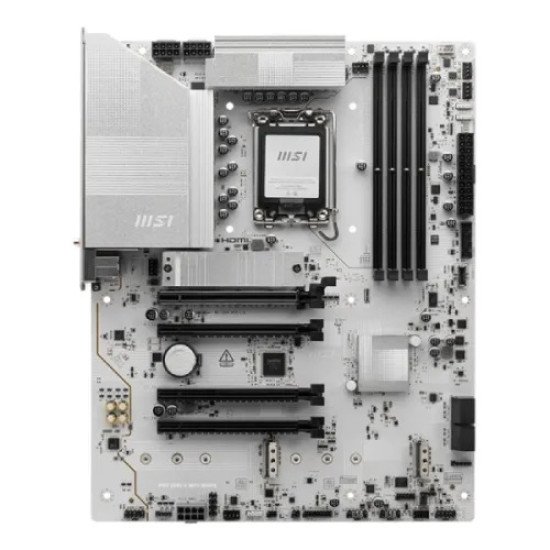

MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard
The MSI PRO Z890-S WIFI WHITE LGA 1851 ATX motherboard features an LGA1851 socket and is designed to support Intel Core Ultra Processors (Series 2). Its DDR5 memory compatibility, 8800+ MT/s (OC) speed, and 256GB maximum capacity guarantee outstanding system performance and multitasking. Lightning Gen 5 x4 M and a 4x PCI-E x16 slot arrangement with PCIe 5.0 capability are features of this MSI Z890 motherboard.With two slots, it provides excellent expandability and blazingly quick data transfer rates. With three M.2 slots and four SATA 6G connections, the MSI PRO Z890-S WIFI WHITE Motherboard offers even more storage and supports RAID configurations for both SATA and NVMe devices. With Intel Wi-Fi 7 for wireless rates up to 5.8Gbps, 2.5Gbps LAN, and numerous USB ports, including USB 20Gbps Type-C and USB 5Gbps Type-A for quick and reliable connections, the connectivity possibilities are excellent. The inbuilt Thunderbolt 4 connection on the MSI PRO Z890-S WIFI WHITE LGA1851 motherboard supports 8K displays, offers daisy-chaining for numerous devices, and transfers data at up to 40Gbps. Type-C DisplayPort, HDMI 2.1, and DisplayPort 1.4 are graphics outputs that support resolutions up to 8K. This MSI PRO Z890-S WIFI WHITE LGA 1851 motherboard features a sturdy 6-layer PCB, twin CPU power connectors, and improved cooling features, including MOSFET thermal pads with a 7W/mK rating and EZ M.2 Shield Frozr. Additionally, it has Audio Boost technology, which is driven by the Realtek ALC897 Codec and provides 7.1-channel HD audio for rich stereo. Four EZ Debug LEDs make debugging easier, and addressable LED connectors offer a wide range of RGB customization options. The MSI PRO Z890-S WIFI WHITE Mobo, designed to run Windows 11 64-bit, is a great option for creating a strong, future-ready system with outstanding performance, connection, and design.
