- Model: MPG Z890 EDGE TI WIFI
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5, Max 256GB 9200 - 6400 (OC) MT/s
- Graphics Output: 1x HDMI, 2x Type-C DisplayPort
- Features: 5x M.2, Intel Wi-Fi 7
- Stock: In Stock
- Brand: MSI
- Model: MPG Z890 EDGE TI WIFI
| Basic Information | |
| Audio | Realtek® ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Chipset | INTEL Z890 |
| Form Factor | ATX (243.84mmx304.8mm) |
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) |
| Connector & Ports | |
| Audio | 1x Front Audio (JAUD) |
| Display Port | 2x Type-C DisplayPort ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| LAN Port (s) | 1x Intel® Killer™ E5000B 5G LAN |
| RAID | •Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices •Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices |
| Supported Storage | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices 4x SATA 6G*Please refer to the manual for M.2 SSD heatsink restrictions. |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 1x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1 |
| Wireless Communication module | Intel® Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth 5.4**, MLO, 4KQAM |
| Expansion Slots | |
| M.2 Socket | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices*Please refer to the manual for M.2 SSD heatsink restrictions. |
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)• PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4 |
| Graphics | |
| Graphics | 1x HDMI Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Memory | |
| Maximum Memory | 256GB |
| Slots | 4x DDR5 UDIMM, Maximum Memory |
| Supported Memory | Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s |
| Type | DDR5 |
| Others | |
| Special Features | LED FEATURE 4x EZ Debug LED 1x EZ Digit Debug LED |
| Warranty Information | |
| Warranty | 3 year warranty |

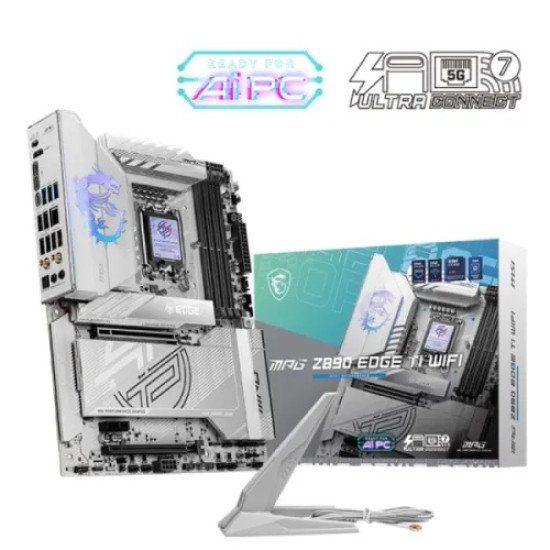

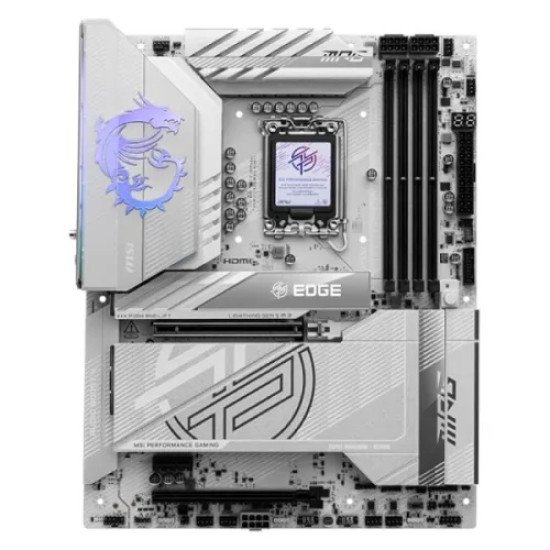

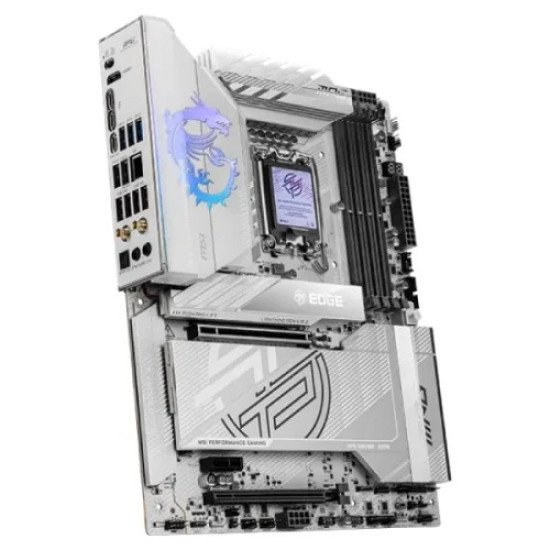

MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard
The MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard is a state-of-the-art solution designed for gamers, enthusiasts, and professionals seeking exceptional performance. Built on the Intel Z890 chipset, the MSI MPG Z890 EDGE TI WIFI ATX Motherboard supports Intel Core Ultra Processors (Series 2) and offers compatibility with cutting-edge DDR5 memory, providing up to 256GB capacity and overclocking speeds reaching 9200+ MT/s. This MSI MPG Z890 EDGE TI WIFI Motherboard features advanced PCIe 5.0 technology, delivering unmatched bandwidth for next-generation GPUs, along with five high-speed M.2 slots for ultra-fast storage, including support for PCIe 5.0 SSDs. With onboard Thunderbolt 4 ports, this MSI MPG Z890 EDGE TI WIFI delivers transfer speeds up to 40Gbps, supports 8K displays, and offers seamless device daisy-chaining. The integrated Intel Killer BE1750x Wi-Fi 7 and 5G LAN provide superior networking performance, while a comprehensive I/O panel includes USB 20Gbps Type-C and multiple high-speed USB ports. Designed for top-tier reliability and functionality, this MSI Motherboard also features Realtek ALC1220P audio, EZ Debug LEDs, and robust customization options for RGB lighting. Whether for gaming, content creation, or high-performance computing, the MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard is an outstanding choice.
